Momentum Graphs

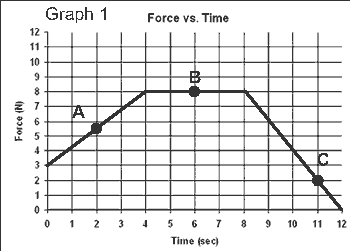

Which graphs shows positive forces?
1. Graph 1
2. Graph 2

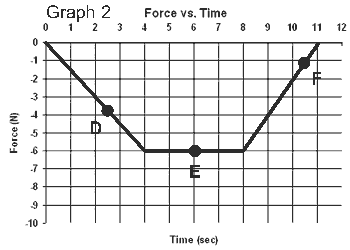

Which graphs shows negative forces?
1. Graph 1
2. Graph 2
Which letter shows the least negative force?
1. A
2. B
3. C
4. D
5. E
6. F
Which letter shows the greatest negative force?
1. A
2. B
3. C
4. D
5. E
6. F
Which letter shows the weakest positive force?
1. A
2. B
3. C
4. D
5. E
6. F
Which letter shows the strongest positive force?
1. A
2. B
3. C
4. D
5. E
6. F
At what letter does the object have the greatest positive acceleration?
1. A
2. B
3. C
4. D
5. E
6. F
At what letter does the object have the greatest negative acceleration?
1. A
2. B
3. C
4. D
5. E
6. F
At what letter is the object slowing down gradually in the positive direction?
1. A
2. B
3. C
4. D
5. E
6. F
At what letter is the positive force on the object increasing.
1. A
2. B
3. C
4. D
5. E
6. F
At what letter is there a constant positive force?
1. A
2. B
3. C
4. D
5. E
6. F
At what letter is positive force decreasing?
1. A
2. B
3. C
4. D
5. E
6. F
Which letter shows an increasing negative force?
1. A
2. B
3. C
4. D
5. E
6. F
Which letter shows a constant negative force?
1. A
2. B
3. C
4. D
5. E
6. F
Which letter shows a decreasing negative force?
1. A
2. B
3. C
4. D
5. E
6. F
What does the area of the graph show?
1. Force
2. Time
3. Momentum
4. Impulse
5. Work
Which graph will cause a negative change of momentum (Δp)?
1. Graph 1
2. Graph 2
Which graph will cause a positive change of momentum (Δp)?
1. Graph 1
2. Graph 2
Which letter shows where the object will slow down in the negative direction the fastest?
1. A
2. B
3. C
4. D
5. E
6. F

Momentum Graphs

Notes on Understanding Momentum Graphs here.
