Refraction

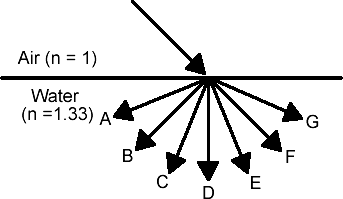

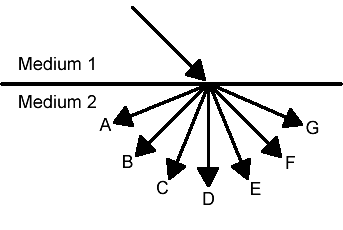

$RefractionArrowfromLeft.gif$

Medium 1 is air; Medium 2 is water.
1. A
2. B
3. C
4. D
5. E
6. F
7. G

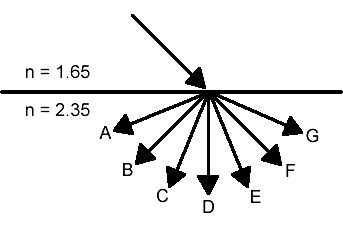

$RefractionArrowfromLeft.gif$

Medium 1: n₁ = 1.65; Medium 2: n₂ = 2.35
1. A
2. B
3. C
4. D
5. E
6. F
7. G
$RefractionArrowfromLeft.gif$

Medium 2 is denser than Medium 1
1. A
2. B
3. C
4. D
5. E
6. F
7. G

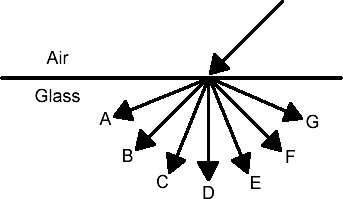

$RefractionArrowfromLeft.gif$

Medium 1 is glass; Medium 1 is air.
1. A
2. B
3. C
4. D
5. E
6. F
7. G
$RefractionArrowfromRight.gif$

Medium 1 is air; Medium 2 is glass.
1. A
2. B
3. C
4. D
5. E
6. F
7. G

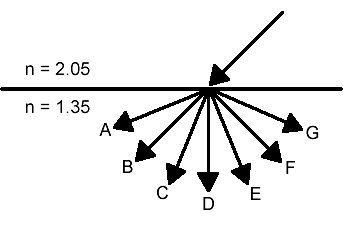

$RefractionArrowfromRight.gif$

Medium 1: n₁ = 2.05; Medium 2: n₂ = 1.35
1. A
2. B
3. C
4. D
5. E
6. F
7. G
$RefractionArrowfromRight.gif$

Medium 1 is denser than Medium 2.
1. A
2. B
3. C
4. D
5. E
6. F
7. G

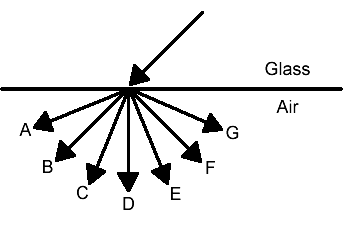

$RefractionArrowfromRight.gif$

Medium 1 is glass; Medium 2 is air.
1. A
2. B
3. C
4. D
5. E
6. F
7. G

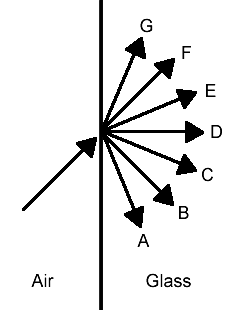

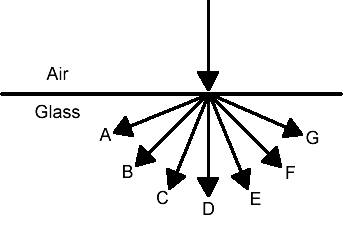

$RefractionArrowfromVertical.gif$

Medium 1 is air; Medium 2 is glass.
1. A
2. B
3. C
4. D
5. E
6. F
7. G
$RefractionArrowfromVertical.gif$

Medium 1 is denser than Medium 2.
1. A
2. B
3. C
4. D
5. E
6. F
7. G

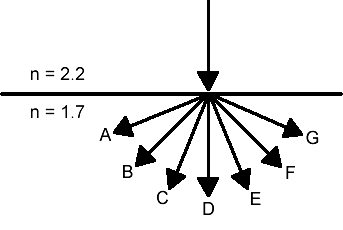

$RefractionArrowfromVertical.gif$

Medium 1 n₁ = 2.2; Medium 2 n₂ = 1.7
1. A
2. B
3. C
4. D
5. E
6. F
7. G
$RefractionTiltedLeft.gif$

Medium 1 is denser.
1. A
2. B
3. C
4. D
5. E
6. F
7. G

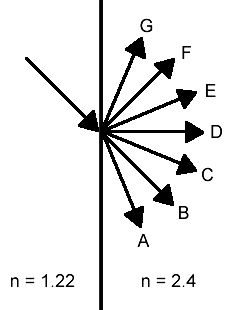

$RefractionTiltedLeft.gif$

Medium 1 n₁ = 1.22; Medium 2 n₂ = 2.4
1. A
2. B
3. C
4. D
5. E
6. F
7. G
$RefractionTiltedLeft.gif$

Medium 1 is air; Medium 2 is glass.
1. A
2. B
3. C
4. D
5. E
6. F
7. G

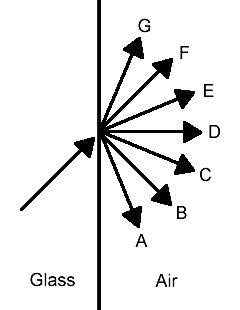

$RefractionTiltedRight.gif$

Medium 1 is glass; Medium 2 is air.
1. A
2. B
3. C
4. D
5. E
6. F
7. G
$RefractionTiltedRight.gif$

Medium 2 is denser.
1. A
2. B
3. C
4. D
5. E
6. F
7. G
$RefractionTiltedRight.gif$

Medium 1 n₁ = 1.81; Medium 2 n₂ = 1.00
1. A
2. B
3. C
4. D
5. E
6. F
7. G

Refraction

Choose which direction light will refract.
