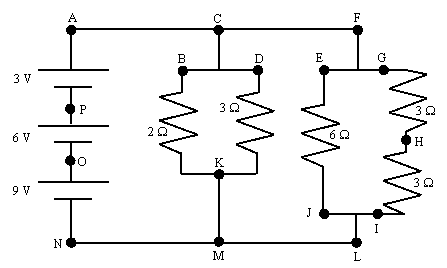

Voltage Differences Around a Circuit

Find the voltage from N to O.
1. 0 volts
2. 3 volts
3. 6 volts
4. 9 volts
5. 15 volts
6. 18 volts
Find the voltage from N to P.
1. 0 volts
2. 3 volts
3. 6 volts
4. 9 volts
5. 15 volts
6. 18 volts
Find the voltage from P to A.
1. 0 volts
2. 3 volts
3. 6 volts
4. 9 volts
5. 15 volts
6. 18 volts
Find the voltage from A to N.
1. 0 volts
2. 3 volts
3. 6 volts
4. 9 volts
5. 15 volts
6. 18 volts
Find the voltage from B to D
1. 0 volts
2. 3 volts
3. 6 volts
4. 9 volts
5. 15 volts
6. 18 volts
Find the voltage from A to G.
1. 0 volts
2. 3 volts
3. 6 volts
4. 9 volts
5. 15 volts
6. 18 volts
Find the voltage from N to K.
1. 0 volts
2. 3 volts
3. 6 volts
4. 9 volts
5. 15 volts
6. 18 volts
Find the voltage from N to F.
1. 0 volts
2. 3 volts
3. 6 volts
4. 9 volts
5. 15 volts
6. 18 volts
Find the voltage from D to K.
1. 0 volts
2. 3 volts
3. 6 volts
4. 9 volts
5. 15 volts
6. 18 volts
Find the voltage from G to H.
1. 0 volts
2. 3 volts
3. 6 volts
4. 9 volts
5. 15 volts
6. 18 volts
Find the voltage from G to I.
1. 0 volts
2. 3 volts
3. 6 volts
4. 9 volts
5. 15 volts
6. 18 volts
Find the voltage from J to P.
1. 0 volts
2. 3 volts
3. 6 volts
4. 9 volts
5. 15 volts
6. 18 volts
Find the voltage from O to G.
1. 0 volts
2. 3 volts
3. 6 volts
4. 9 volts
5. 15 volts
6. 18 volts
Find the voltage at N.
1. 0 volts
2. 3 volts
3. 6 volts
4. 9 volts
5. 15 volts
6. 18 volts
Find the voltage at B.
1. 0 volts
2. 3 volts
3. 6 volts
4. 9 volts
5. 15 volts
6. 18 volts
Find the voltage at H.
1. 0 volts
2. 3 volts
3. 6 volts
4. 9 volts
5. 15 volts
6. 18 volts
