Electrostatics -
back to Teacher Notes

NOTE: If you can't see the images (too small), move your cursor off the page, then back. An icon will show up at the bottom of the page that allows you to expand the pictures. OR you can save it to your desktop and open it in a graphics program (like Microsoft Picture and Fax Viewer).

Study Helps Available here

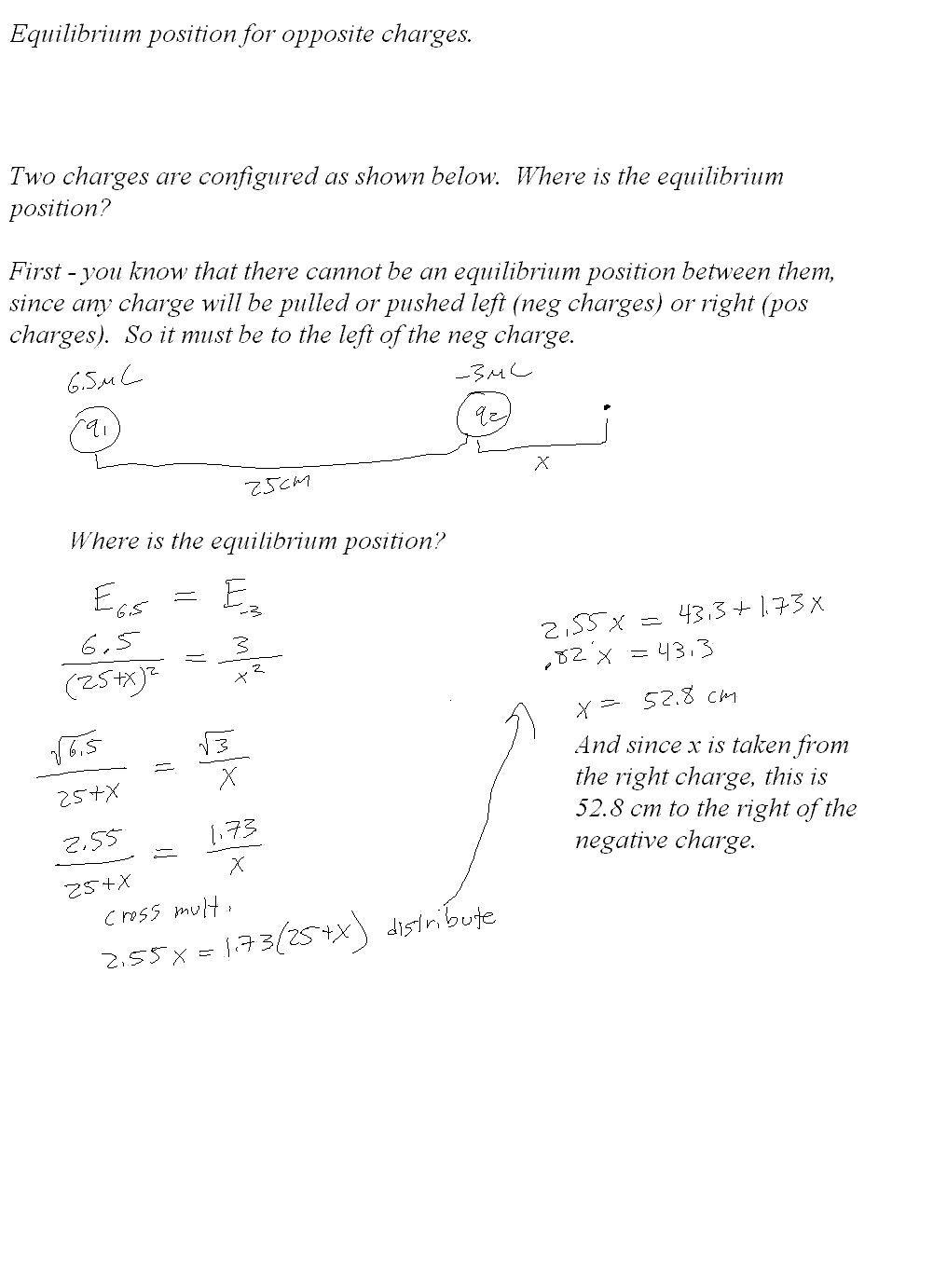

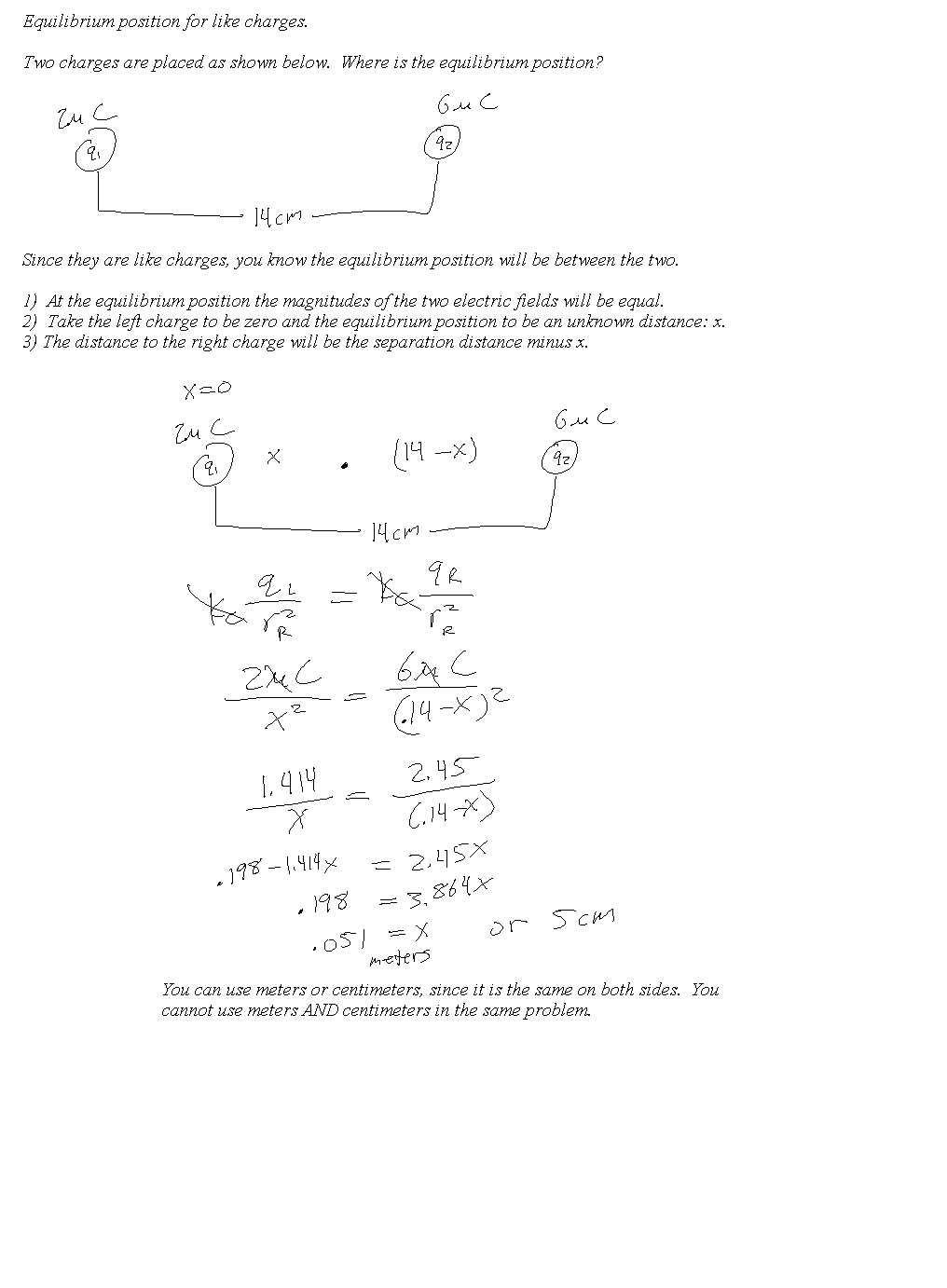

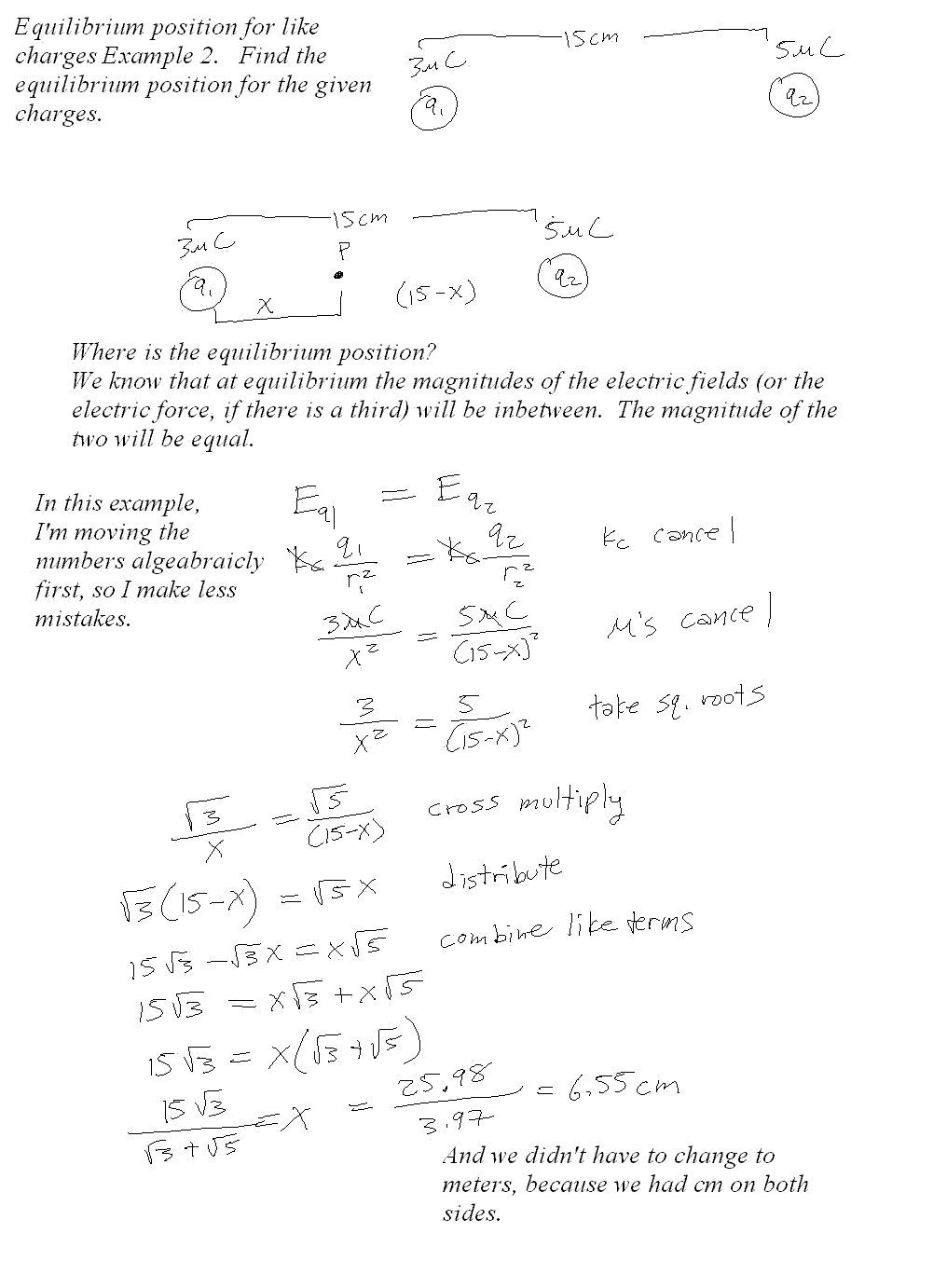

Equilibrium Position Examples:

Finding net field and voltage broken down.

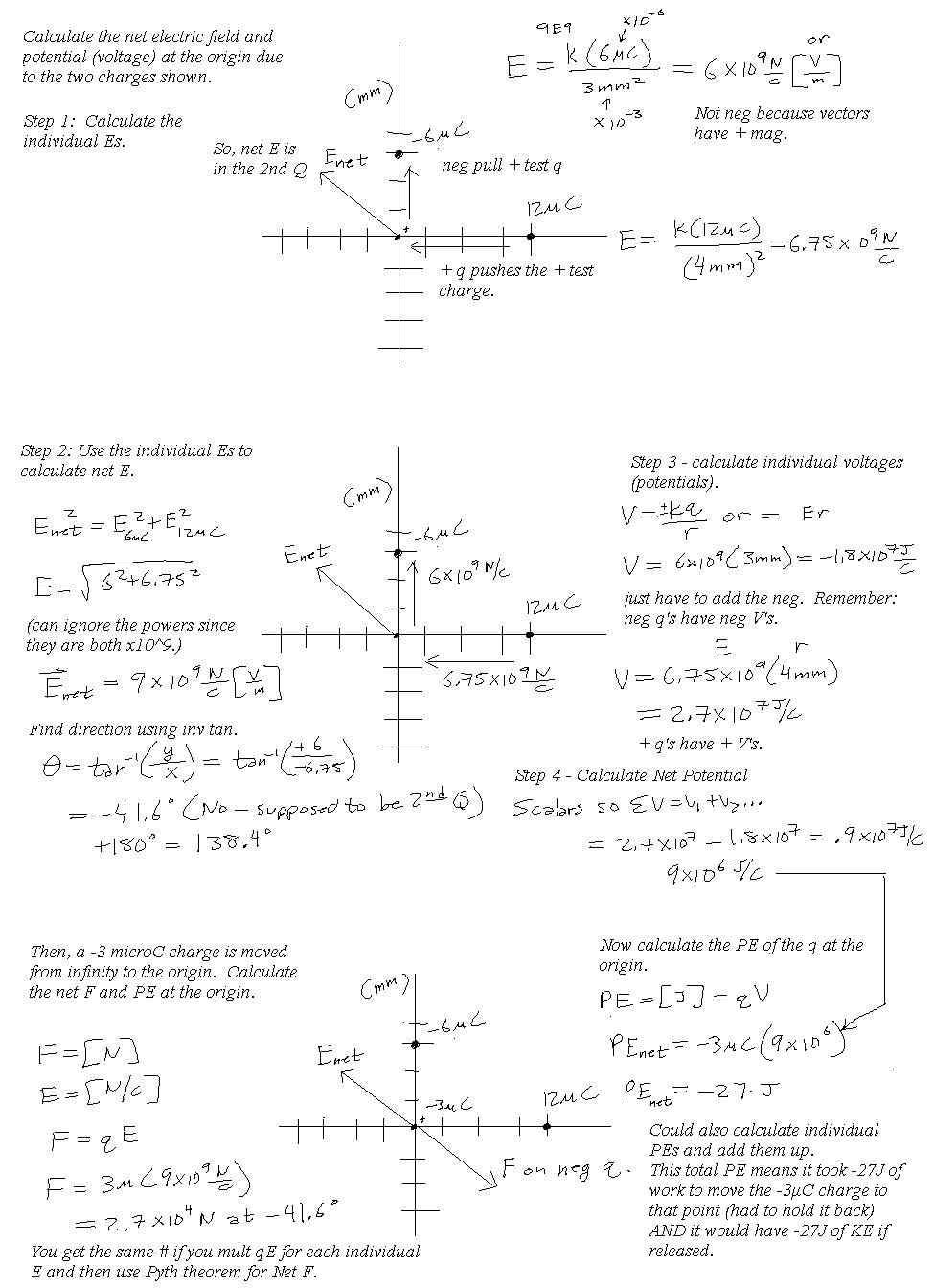

Calculating net E, V, F, and PE with steps

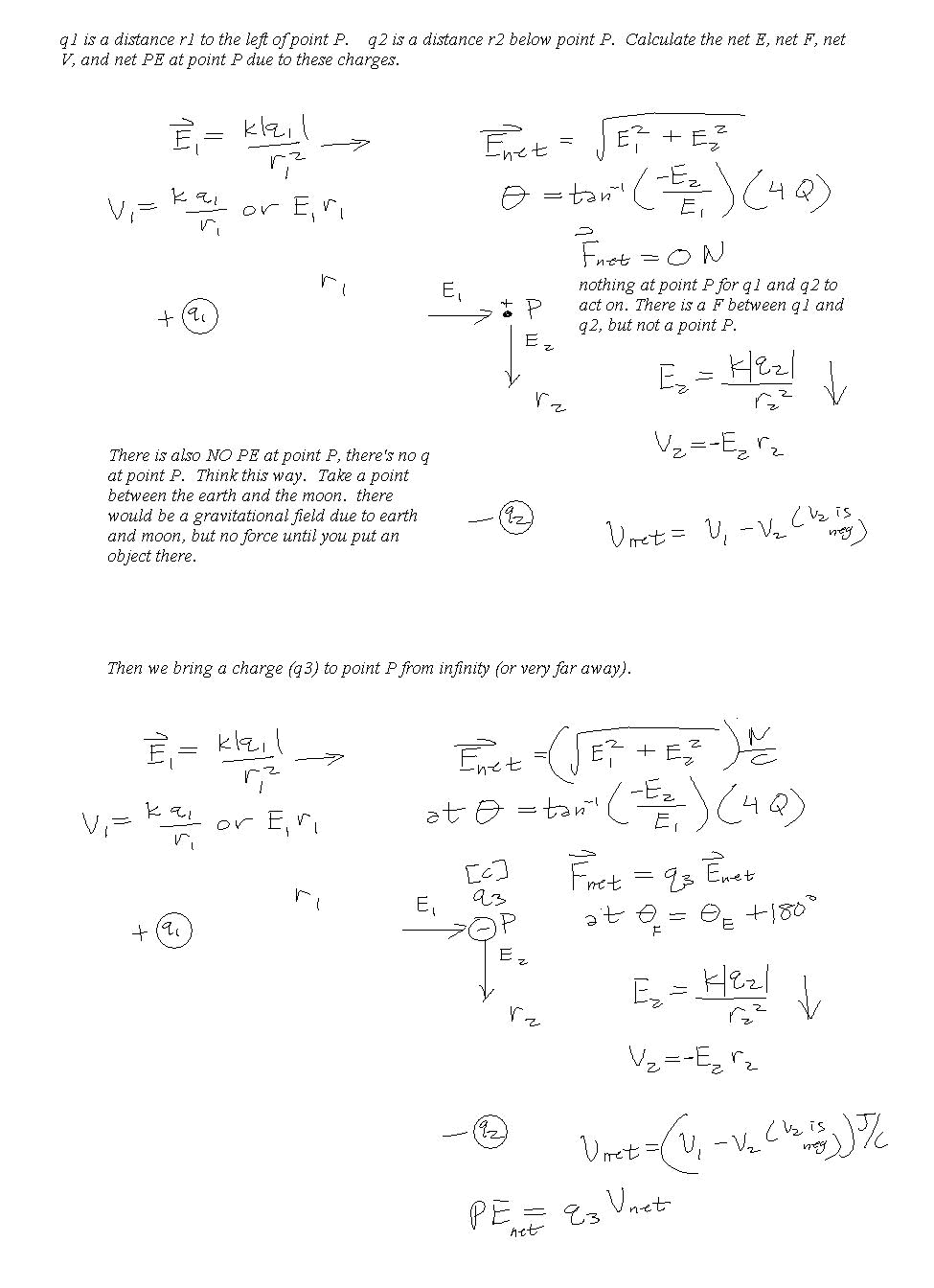

Calculating net E, V, F, and PE with just variables. This will help your understand the process. If you can follow this, you get it.

Calculating net E, V, F, and PE. Just the numbers, no steps shown. Remember there are also videos that show all the steps.

Example 1
Example 2
Example 3
